Wired 2D

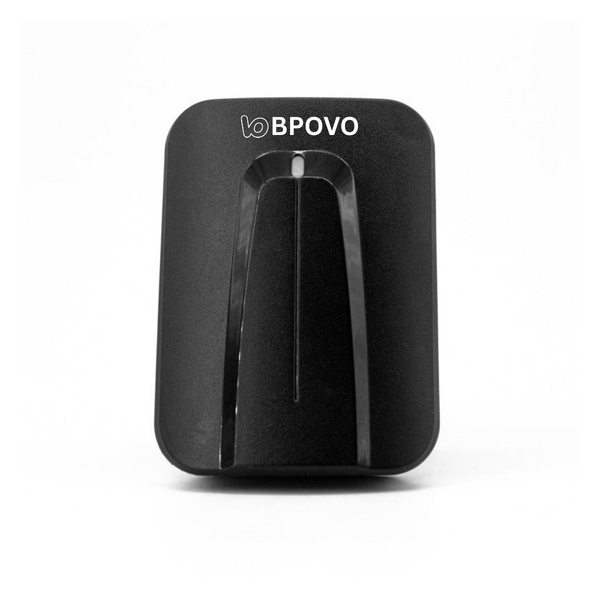

Category Details Model W10 (2D Wired Barcode Scanner) Sensor CMOS, 300,000 pixels Resolution 640 × 480 pixels Light Source Self-luminous LED Scan Speed 120 frames per second Scan Angle 60° × 360° Scanning Modes Key trigger / Auto-sensing / Continuous scanning Interfaces USB-HID keyboard, USB-COM virtual serial port Prompt Methods Buzzer, LED indicator, vibration motor Setup Method Manual sequential scanning of setup codes Durability IP54-rated (dust & water splash resistant) Design Ergonomic, comfortable for extended use Application Areas Retail, supermarket, warehouse, logistics, manufacturing, healthcare

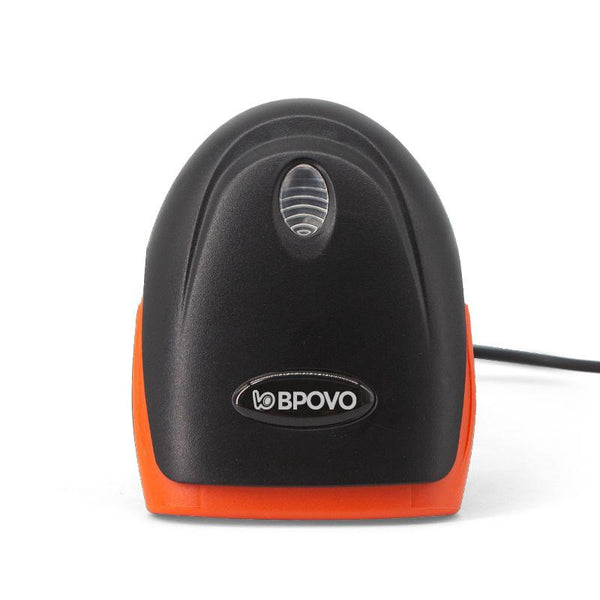

Specification U6 2D Wired Barcode Scanner (50W) U8 2D Wired Barcode Scanner (50W) U12 2D Wired Barcode Scanner (30W) Sensor 640×480 Global CMOS 640×480 Global CMOS 640×480 CMOS Resolution 640 × 480 pixels 640 × 480 pixels 640 × 480 pixels Trigger Modes Manual Manual / Auto-sensing / Continuous Manual / Auto-sensing / Continuous Interfaces USB keyboard / USB virtual COM USB keyboard / USB virtual COM / RS-232 USB keyboard / USB virtual COM User Feedback Buzzer + LED Buzzer + LED Buzzer + LED Decoding Capability 1D & 2D (QR, PDF417, DataMatrix etc.) incl. ≥3.5mil codes 1D & 2D (QR, PDF417, DataMatrix etc.) 1D & 2D (QR, PDF417, DataMatrix etc.) Special Features Wide scan angle (±60°, ±360°), IP54 rated, Drop tested 1.5m Lightweight ergonomic design, 3 trigger modes Compact & affordable, Accurate on low-contrast labels Build Material PC+ABS (IP54 dust/splash resistant) PC+ABS durable housing PC+ABS durable housing Dimensions 97 × 67 × 165 mm 165 × 67 × 97 mm Compact ergonomic Weight 178g (without cable) 180g (without cable) Lightweight Cable 1m straight USB cable 1.6m straight USB cable USB cable (Plug & Play) Operating Temp 0°C – 50°C 0°C – 50°C 0°C – 50°C Storage Temp -40°C – 60°C -40°C – 60°C -40°C – 60°C Humidity 5% – 95% (non-condensing) 5% – 95% (non-condensing) 5% – 95% (non-condensing) Durability IP54 sealing, ≥1.5m drop resistance Impact-resistant PC+ABS Shock-resistant housing

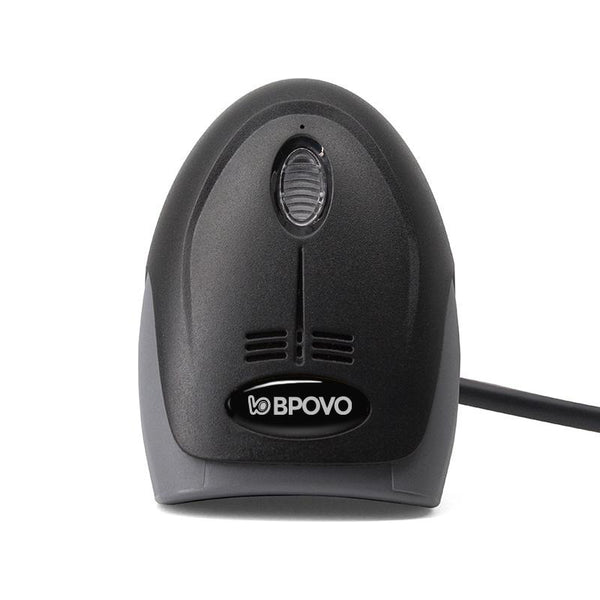

U8 2D Wired Barcode Scanner (50W) - Specifications Sensor Global Exposure CMOS Resolution 640 × 480 pixels Trigger Modes Manual, Auto-sensing, Continuous System Interfaces USB keyboard, USB virtual COM, RS-232 serial Transfer Mode USB cable (data + charging) Prompt Modes Buzzer + LED indicators Read Accuracy QR codes ≥5MIL; 1D codes ≥3MIL Symbol Contrast ≥15% Power Consumption 1.60W (working), 0.40W (standby) Current 320mA (operating); 80mA (standby); 5V ±10% @ 350mA Dimensions 165 × 67 × 97 mm Weight 180g (without cable) Cable 1.6m straight line, one-piece design Material PC+ABS durable housing Operating Temperature 0°C – 50°C Storage Temperature -40°C – 60°C Humidity 5% – 95% (non-condensing)

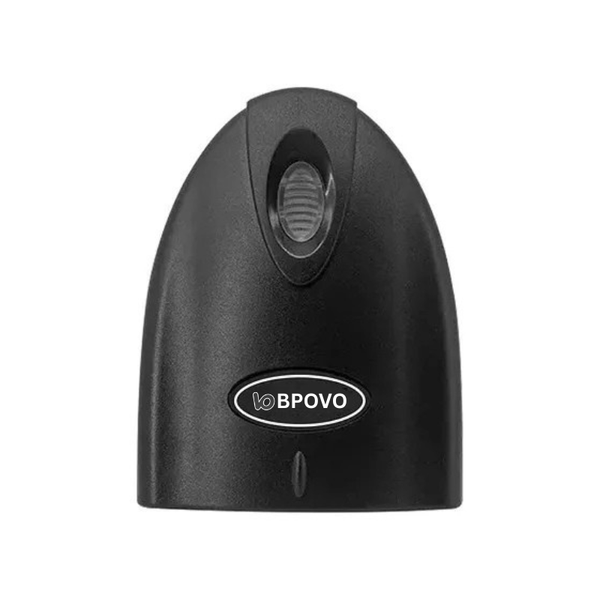

Overview:The BPOVO U2 Wired 2D Barcode Scanning Gun (50W) is a high-performance scanner designed for retail, POS, and inventory management. Equipped with a 2D CMOS sensor, it efficiently reads both 1D barcodes (UPC, EAN, Code39/128, GS1) and 2D codes (QR, DataMatrix, PDF417, Aztec) with high speed and accuracy.Key Features:- Wired USB connection (Keyboard / Virtual COM), plug-and-play- Durable ABS housing, drop-resistant up to 1.5 meters- Operating temperature 0–50°C; Storage temperature -40–60°C; Humidity 5–95% non-condensing- Compact and lightweight design (~165×67×97mm, 180g)Applications:Ideal for retail POS checkout, supermarkets, warehouses, and inventory tracking. Fast scanning of both 1D and 2D codes increases productivity and reduces checkout times.Note:The "50W" designation is a model/series specification; verify exact meaning with supplier if needed.

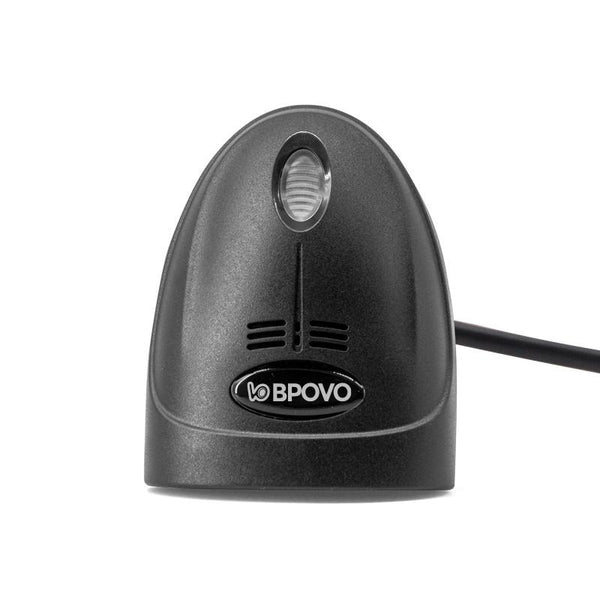

Category Details Model U12 2D Wired Barcode Scanner (30W) Sensor High-resolution CMOS, 640 × 480 pixels Decoding Capability 1D: UPC-A, UPC-E, EAN-13, EAN-8, Code39, Code128, Code93, Interleaved 2 of 5, Codabar, MSI, GS1 DataBar, ISBN/ISSN, UCC/EAN-128, China Post, etc.2D: QR Code, DataMatrix, PDF417, MicroPDF417 Scanning Modes Manual / Auto-sensing / Continuous scanning Interfaces USB Keyboard, USB Virtual Serial Port User Feedback Buzzer + LED Indicators Input Voltage DC 5V ±0.25V Build Material Durable PC+ABS housing Design Compact, ergonomic, lightweight for long use Dimensions Compact handheld size Weight Lightweight, easy to handle Operating Temp 0°C – 50°C Storage Temp -40°C – 60°C Humidity 5% – 95% (non-condensing)

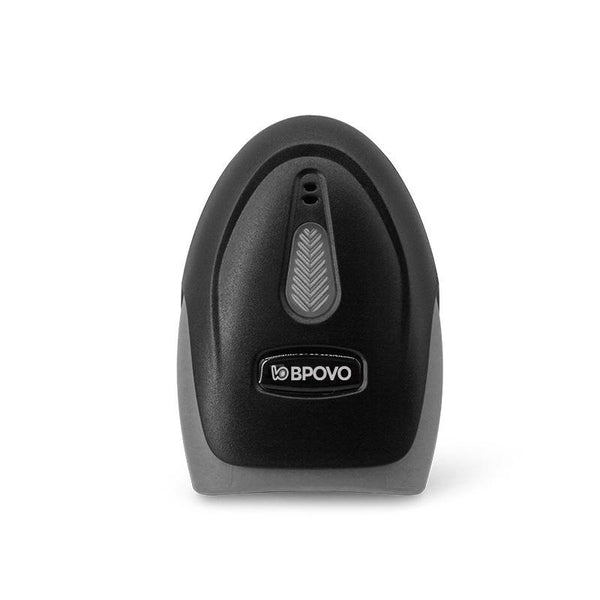

Category Details Model S20 (2D Wired Barcode Scanner, 50W) Sensor CMOS, 648 × 488 pixels Light Source Self-luminous LED Resolution 640 × 480 pixels Scan Speed 120 frames per second Scan Angle 60° × 360° Depth of Field 40 mm – 250 mm Accuracy Code 39 ≥ 5 mil; UPC/EAN ≥ 15 mil Print Contrast ≥25% Scanning Modes Manual trigger / Auto-sensing / Continuous scanning Supported 1D Barcodes EAN-8, EAN-13, UPC-A, UPC-E, Code 128, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, EAN-128, MSI, GS1 Supported 2D Barcodes QR Code, Data Matrix, PDF417, Aztec, MaxiCode Interfaces USB-HID keyboard, USB-COM virtual serial port Prompt Methods Buzzer, LED, optional vibration motor Durability IP54-rated (dust & water splash resistant) Dimensions 156 × 64 × 91 mm Weight 158 g Material ABS plastic Cable Length 1 m Input Voltage DC 5V ±10% Operating Current 135 mA Compliance CE & FCC certified, Class II laser safety
