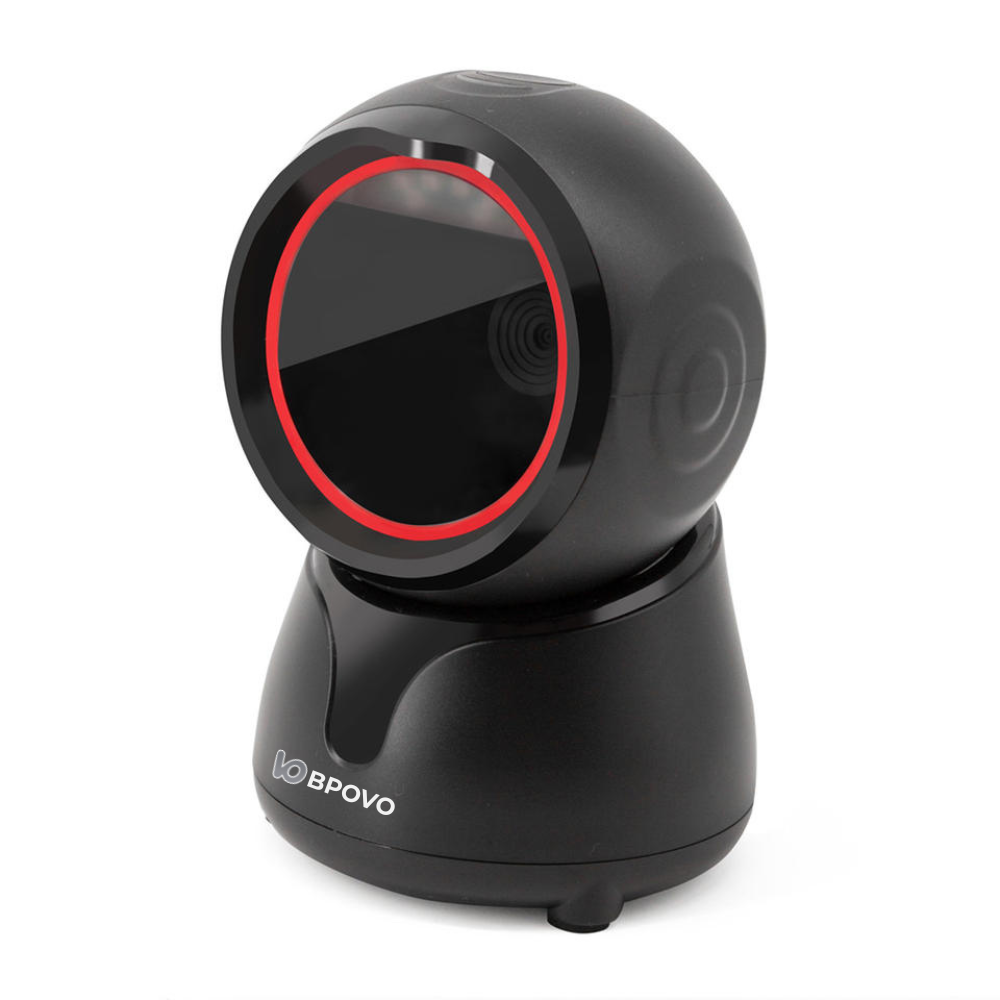

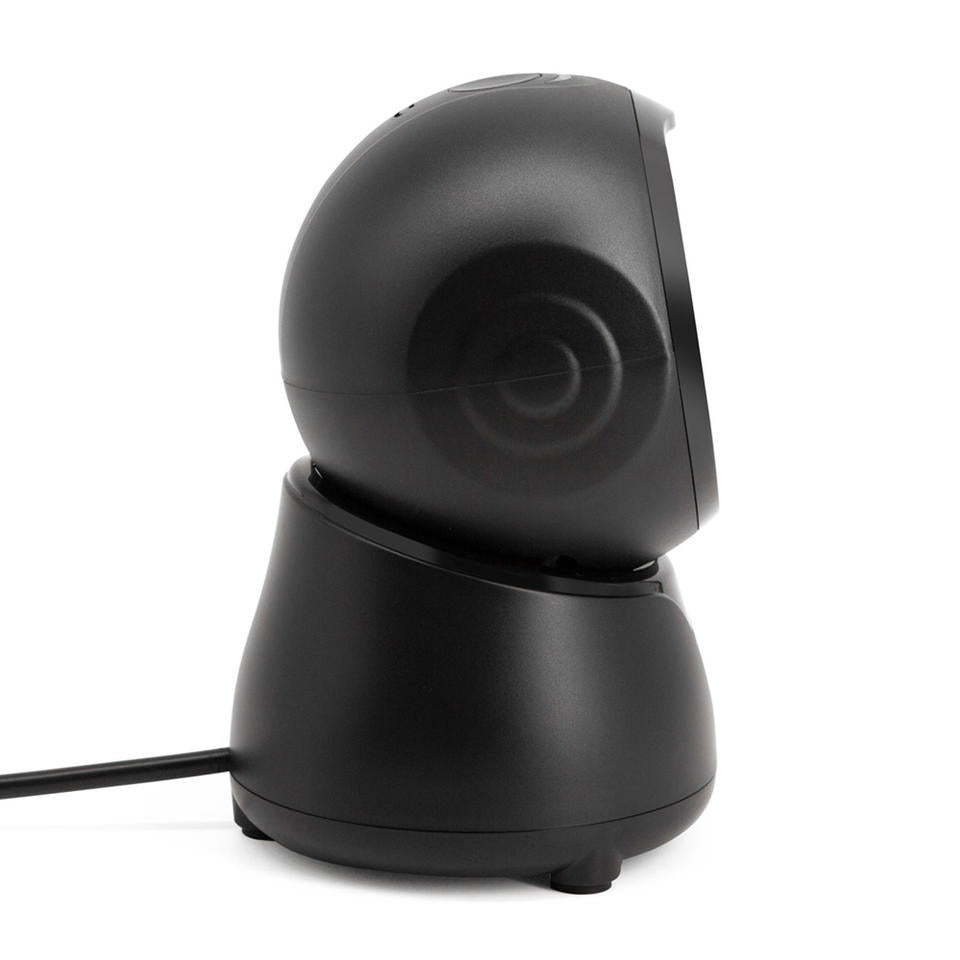

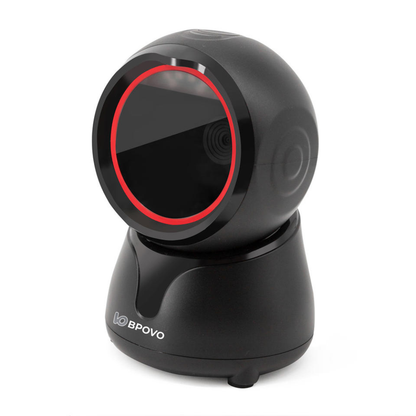

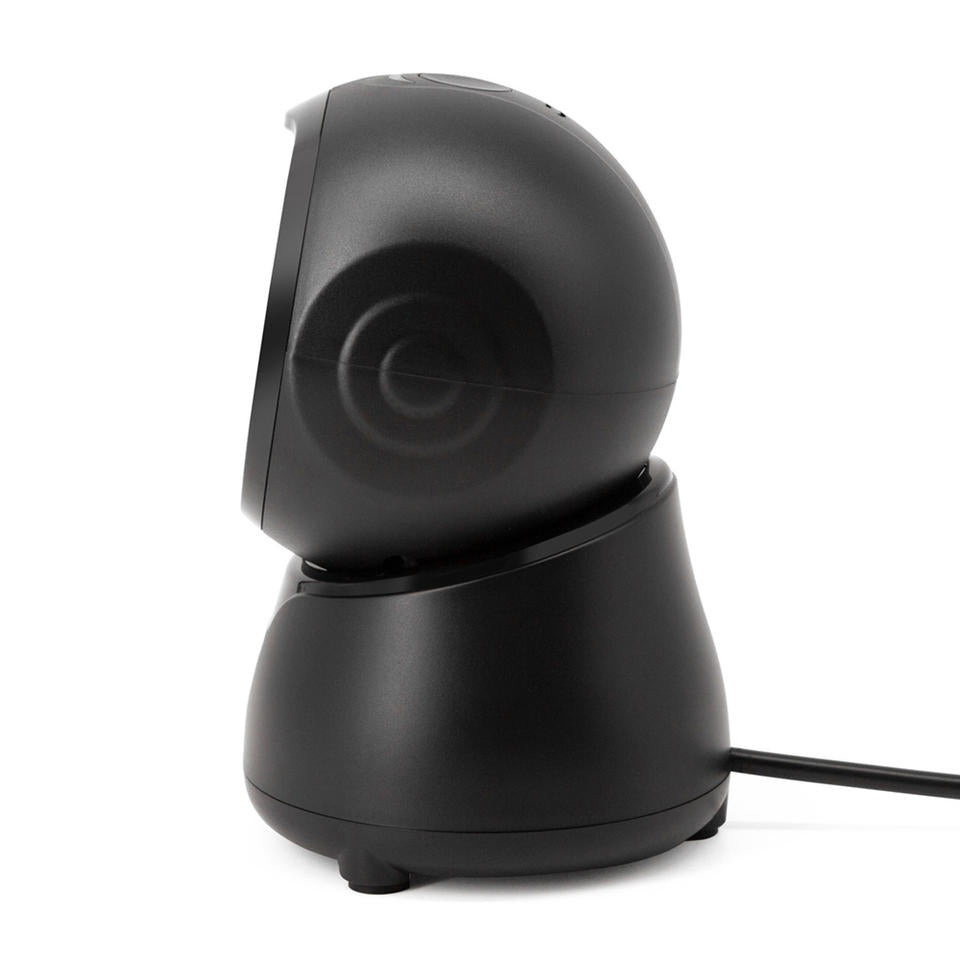

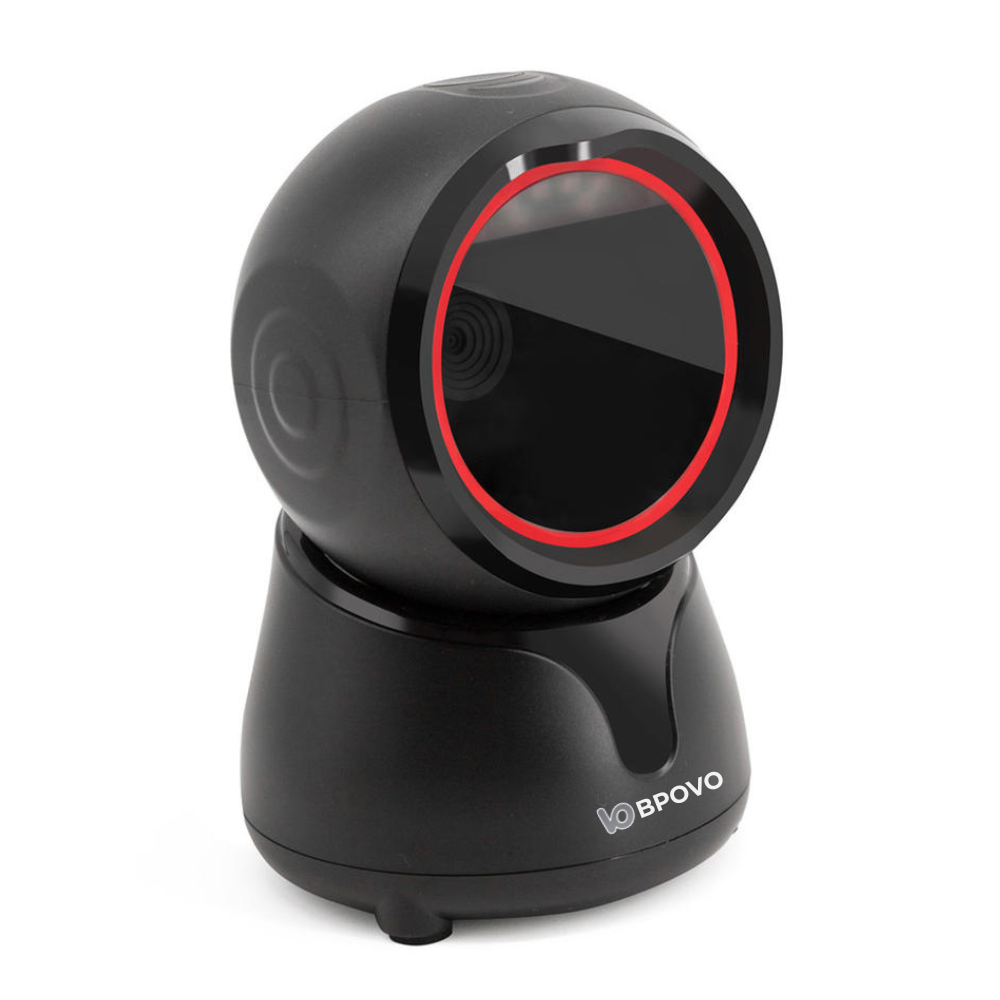

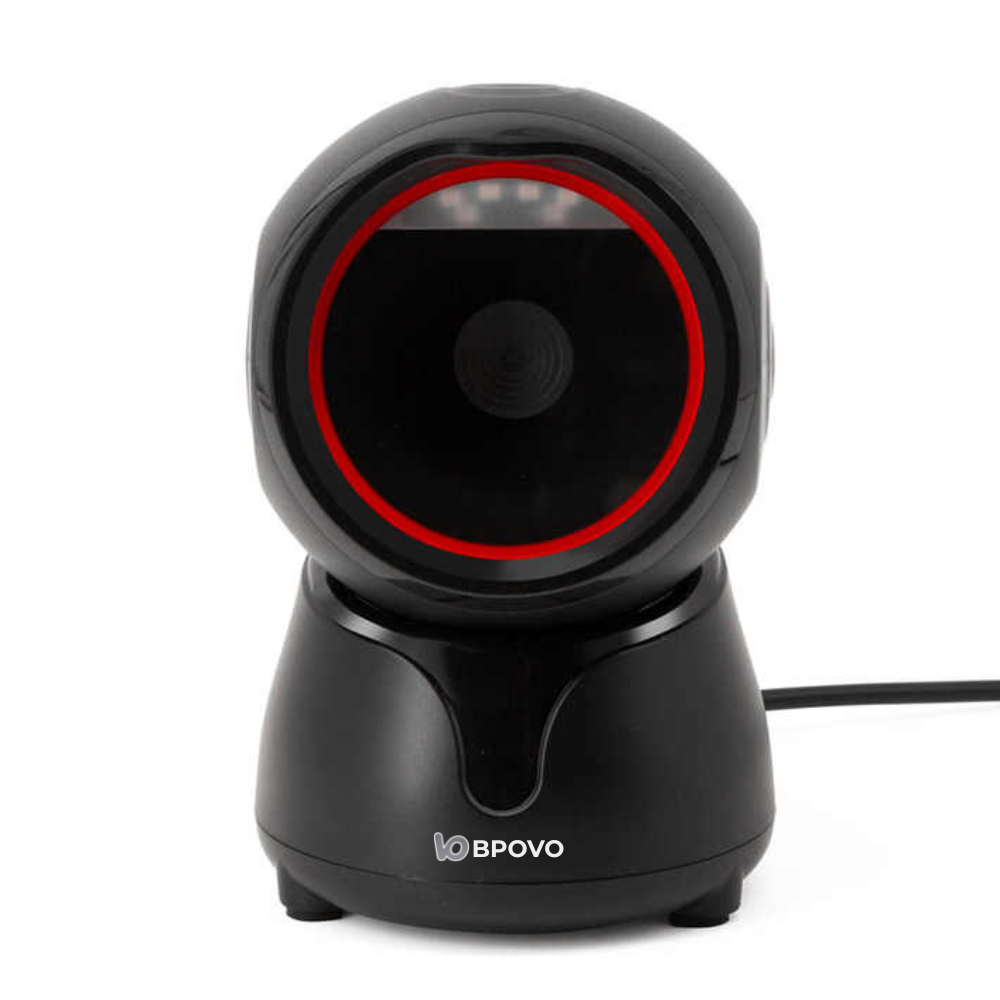

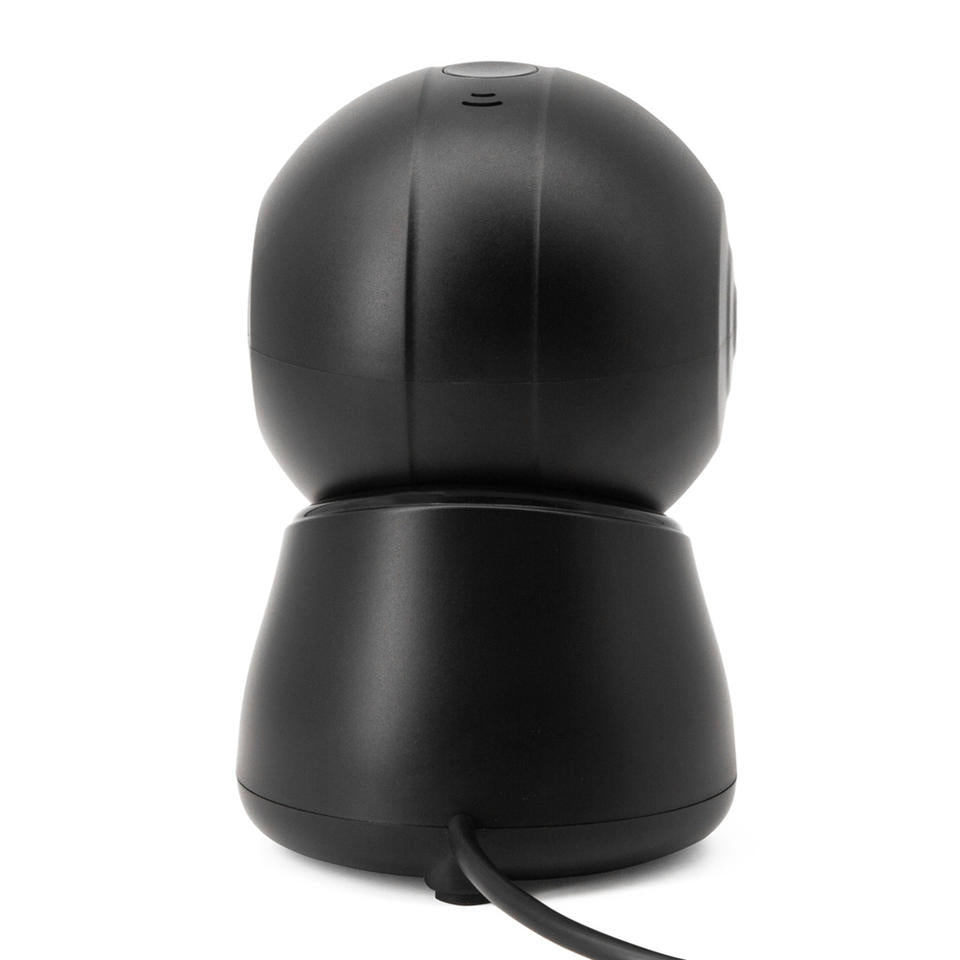

X7-1000A 2D Barcode Scanner Platform – High-Speed & Reliable
Key Features
| X7-1000A Two-dimensional Barcode Scanning Platform | |
|---|---|
| Sensor | CMOS global exposure |
| Light Source | 617nm red LED |
| Image Size | 640 × 480 (optional 800 × 600) |
| Scan Angle | ±60°, ±54°, 360° (left, right, front, back, rotation) |
| Scan Rate | 120 fps |
| Field of View | 48° (H) × 30° (V) |
| Printing Contrast | Minimum 20% |
| Minimum Resolution | ≥ 4 mil |
| Decoding Ability |
1D: EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, Codabar, MSI, RSS-14, RSS-Ltd, RSS-Exp, Standard 2 of 5, Plessey, China Post 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QR Code, MaxiCode, Aztec Code, Code16K Supports mobile screen code reading |
| Scan Mode | Auto-sensing / Continuous scanning |
| Communication Interface | USB-HID keyboard, USB-COM (virtual serial), RS232 |
| Interface Type | USB TYPE-B |
| Prompt Mode | Buzzer, LED light |
| Setup Method | Press the key and manually scan setting codes |
| Housing Material | ABS + PC |
| Cable | Straight line 1.35m |
| Dimensions | 148 × 97 × 97 mm (scanner); 170 × 115 × 115 mm (packaging) |
| Weight | 326g (net); 336g (gross) |
| Input Voltage | DC 5V ±10% |
| Current | Working: 240 mA; Standby: 190 mA |
| Temperature | 0°C ~ 50°C (working); -20°C ~ +70°C (storage) |
| Humidity | 5% ~ 95% (non-condensing) |
