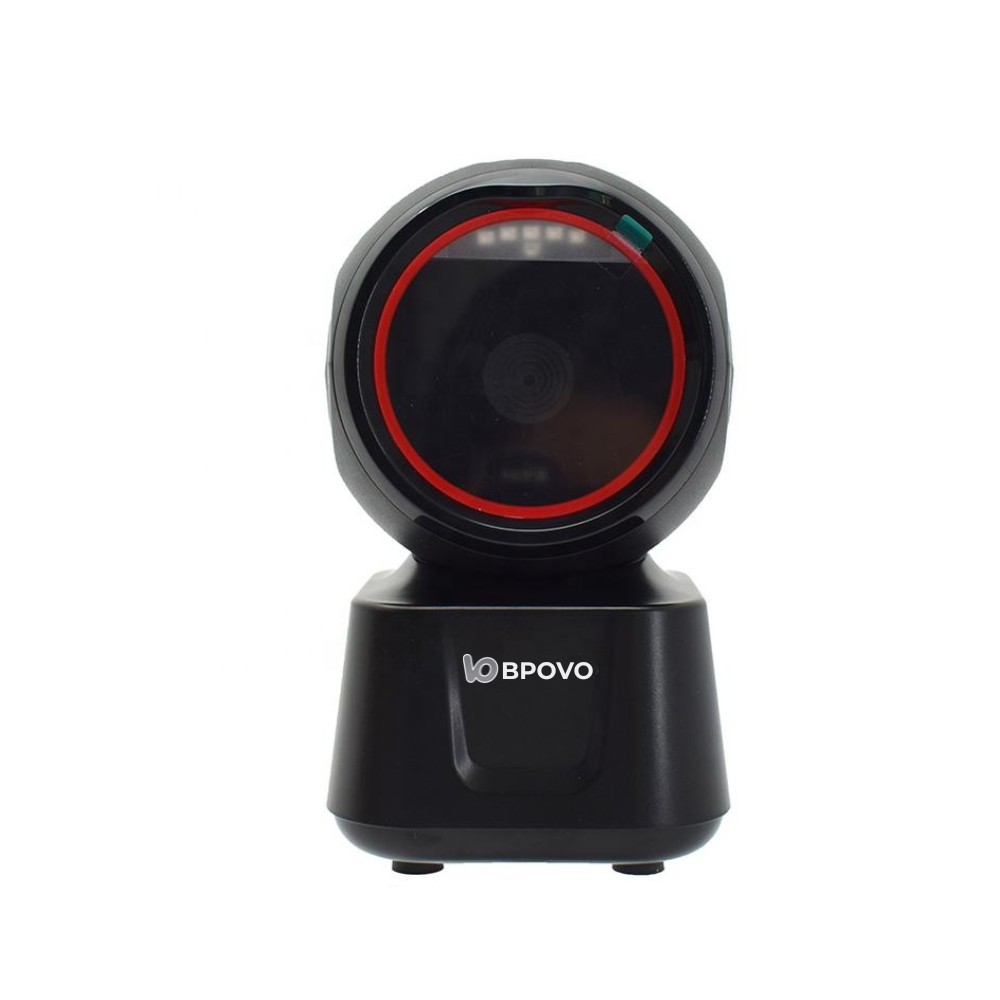

X6-1000A 2D Barcode Scanner Platform – High-Speed & Reliable
Key Features
| Category | Details |
|---|---|
| Key Features | 300,000-pixel global exposure scan engine Larger scanning window & adjustable angle Easy setup with function buttons 4 sound styles + LED indicators Multi-system compatibility Warranty: 1 year |
| Performance | Scan Mode: Auto-sensing / Continuous Scan Type: CMOS global exposure Resolution: 640 × 480 Light Source: 617 nm red LED Scan Rate: 120 scans/sec Scan Angle: ±60° / ±54° / 360° rotation Field of View: 48° (H) × 30° (V) Contrast: ≥20% Min. Resolution: 4 mil |
| Decoding Capability |
1D Codes: EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code39, Code93, ITF, Industrial 2 of 5, Matrix 2 of 5, MSI, RSS, GS1, etc. 2D Codes: QR, Data Matrix, PDF417, Micro QR, Aztec, MaxiCode, Code16K, Han Xin, etc. Special: Mobile screen barcode reading |
| Connectivity | Interfaces: USB-HID, USB-COM, RS232 Port Type: USB Type-B Setup: Button + scan codes Prompt Modes: Buzzer + LED |
| Physical | Material: ABS + PC Cable: 1.3m straight line Product Size: 158 × 92 × 94 mm Box Size: 170 × 115 × 115 mm Weight: 335g (net), 345g (gross) |
| Power & Environment | Voltage: DC 5V ±10% Current: 240mAh (working), 190mAh (standby) Temp: 0°C ~ 50°C (working), -20°C ~ +70°C (storage) Humidity: 5% – 95% non-condensing |
