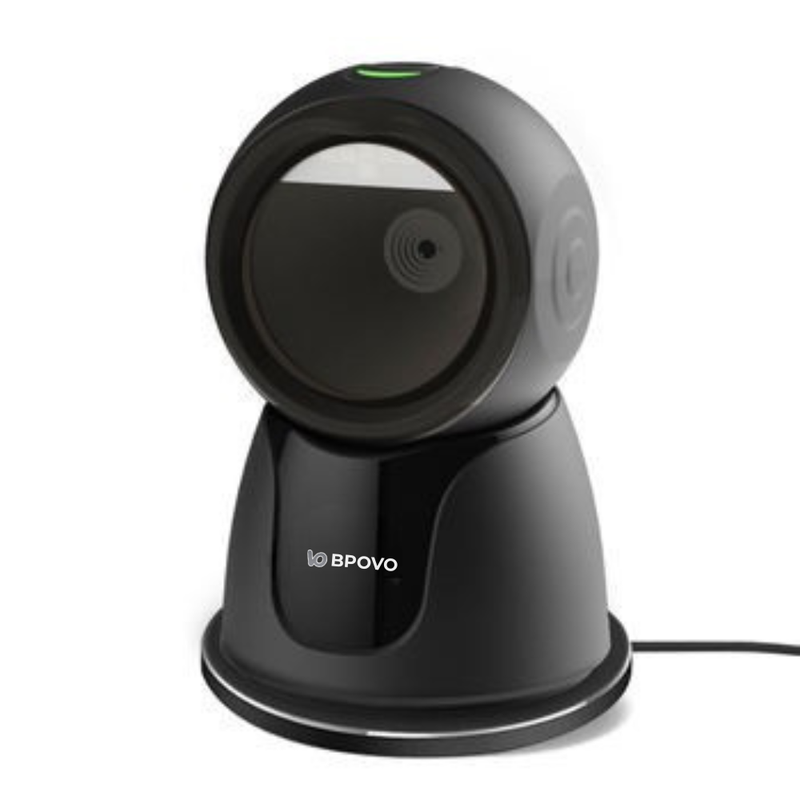

X13-B-1000A Wireless Bluetooth 2D Barcode Scanner – Hands-Free & Reliable
Key Features
| Category | Details |
|---|---|
| Core Performance | Imaging Technology: CMOS global exposure Light Source: 617 nm red LED Image Size: 640 × 480 (optional 800 × 600) Scan Angle: ±60° (L/R), ±54° (F/B), 360° rotation Scan Rate: 120 fps Field of View: 48° (H) × 30° (V) Printing Contrast: ≥20% minimum Minimum Resolution: 4 mil |
| Decoding Capability |
1D: EAN-13, EAN-8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS-Ltd, RSS-Exp, Standard 2 of 5, Plessey, China Post 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QR Code, MaxiCode, Aztec Code, Code16K Special: Supports mobile screen barcode reading |
| Operating Modes | Scan Mode: Auto-sensing / Continuous scanning Setup Method: Press button + scan setup codes Prompt Modes: Buzzer + LED indicator |
| Connectivity | Communication Interfaces: USB-HID keyboard, USB-COM virtual serial port, RS232 serial port Interface Type: USB Type-B |
| Physical Specifications | Housing Material: ABS + PC Cable: 1.35m straight line cable Dimensions: 148 × 97 × 97 mm (Product), 170 × 115 × 115 mm (Packaging) Weight: Net 326 g; Gross 336 g |
| Power & Environment | Input Voltage: DC 5V ±10% Current: Working – 240 mAh; Standby – 190 mAh Operating Temperature: 0°C ~ 50°C Storage Temperature: -20°C ~ +70°C Operating Humidity: 5% – 95% (non-condensing) |
