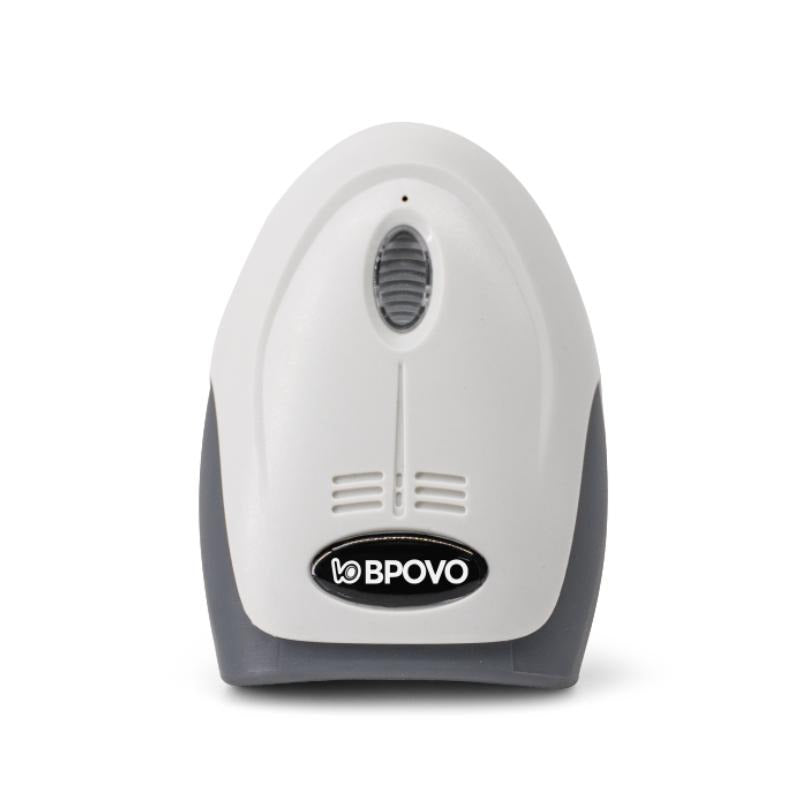

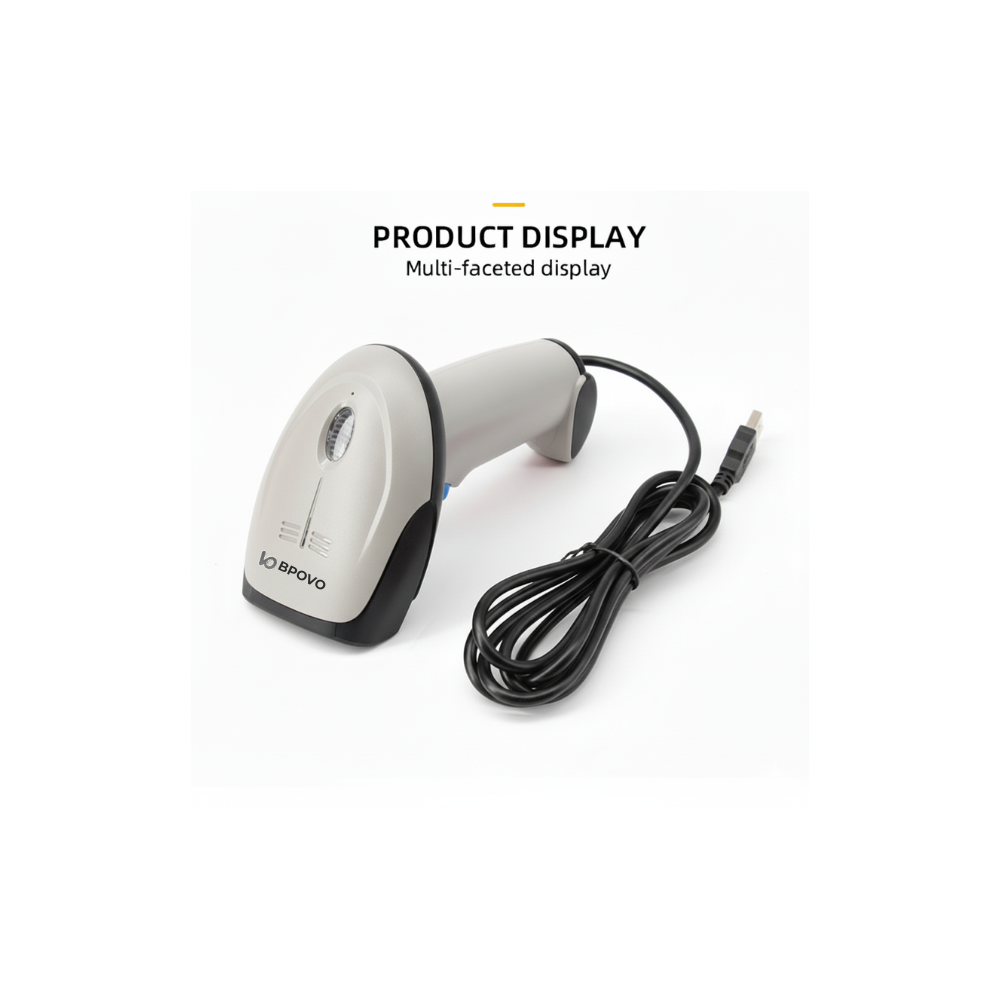

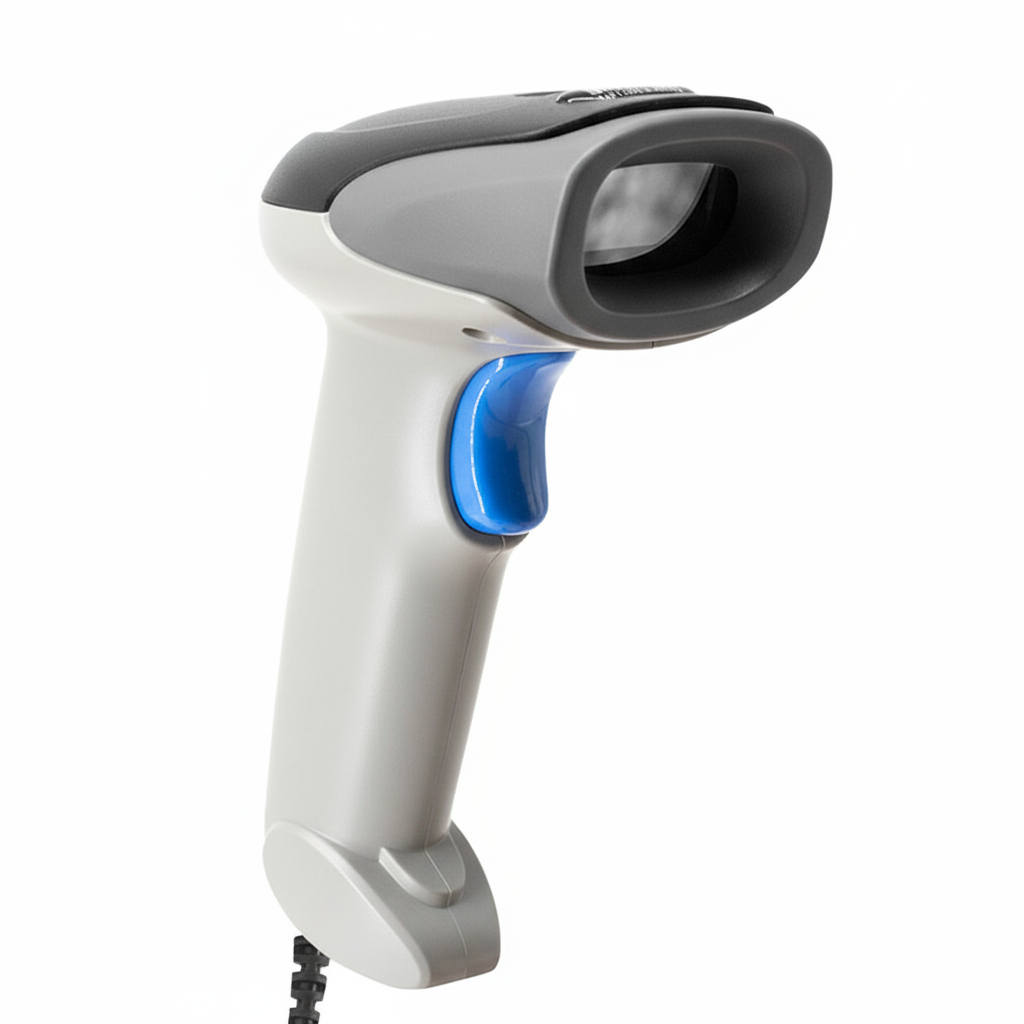

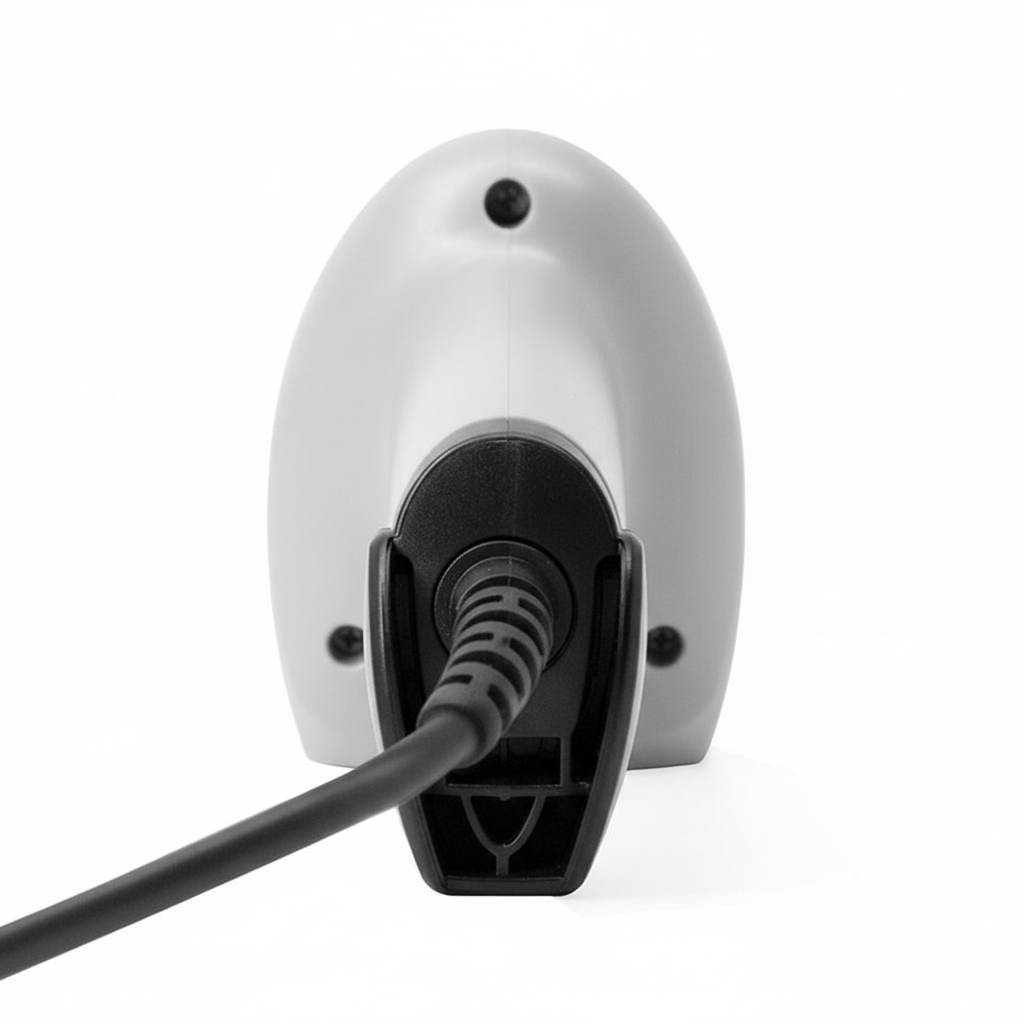

U8-W Wireless Bluetooth 2D Barcode Scanner – Fast & Reliable
Key Features
| Category | Details |
|---|---|
| Model | U8 (2D Wired Barcode Scanner, 50W) |
| Sensor | Global Exposure CMOS |
| Resolution | 640 × 480 pixels |
| Trigger Modes | Manual / Auto-sensing / Continuous scanning |
| Interfaces | USB Keyboard, USB Virtual COM, RS-232 Serial |
| Transfer Mode | USB cable (data + charging) |
| Accuracy | QR Code ≥ 5MIL, 1D Codes ≥ 3MIL (Code39, Code128, EAN-13) |
| Symbol Contrast | ≥15% |
| User Feedback | Buzzer + LED Indicator |
| Durability | PC + ABS shell, impact-resistant |
| Cable Length | 1.6 m (straight) |
| Weight | 180 g (without cable) |
| Input Voltage | DC 5V ±0.25V |
| Power Consumption | 1.60W (working), 0.40W (standby) |
| Current | 320 mA (operating), 80 mA (standby) |
| Setup Method | Manual barcode configuration |
| Indicators | Buzzer + LED |
| Dimensions | 165 × 67 × 97 mm |
| Material | PC + ABS |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -40°C to 60°C |
| Humidity | 5% – 95% (non-condensing) |
