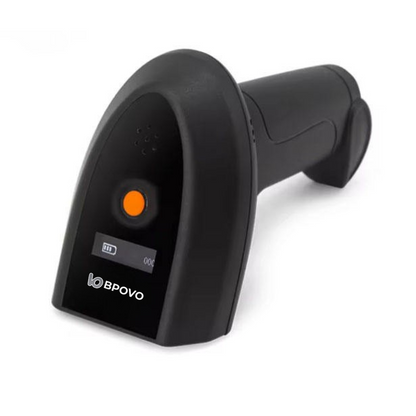

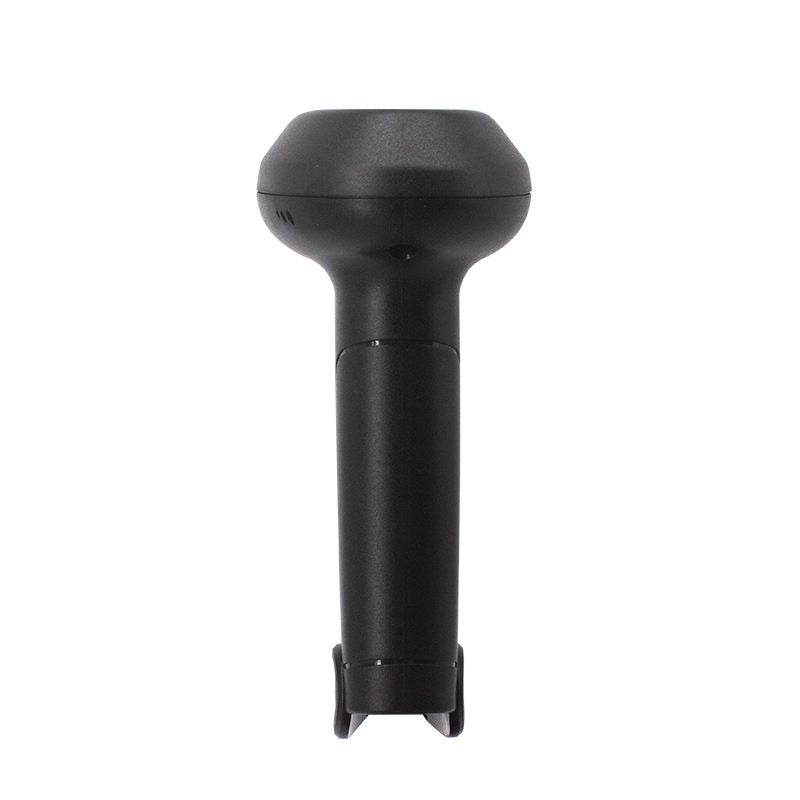

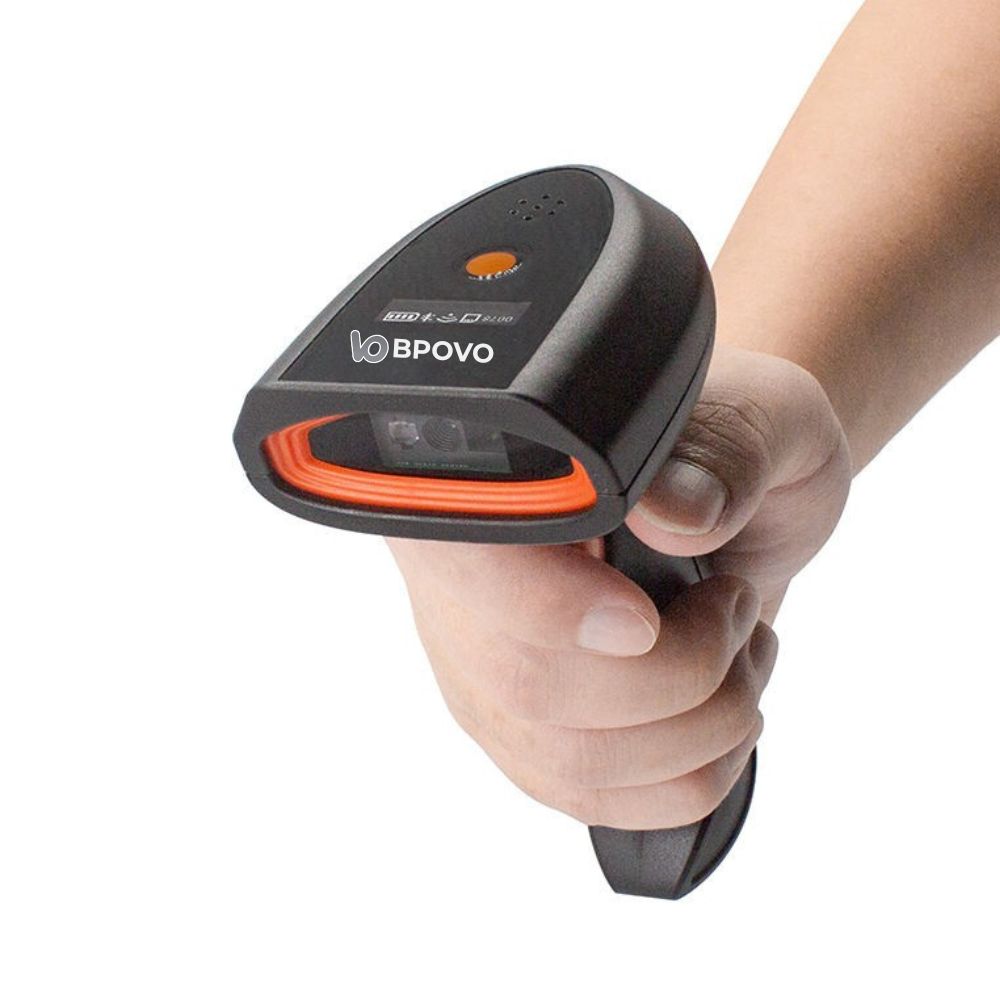

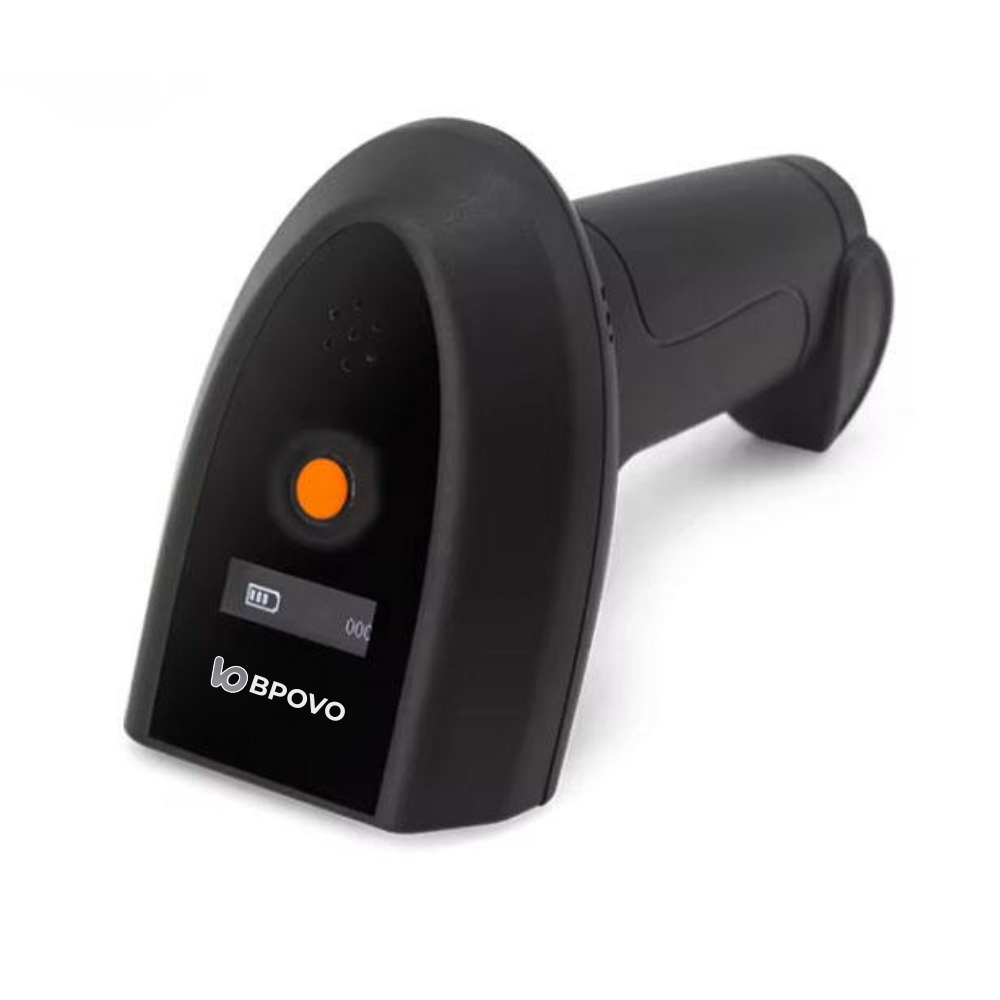

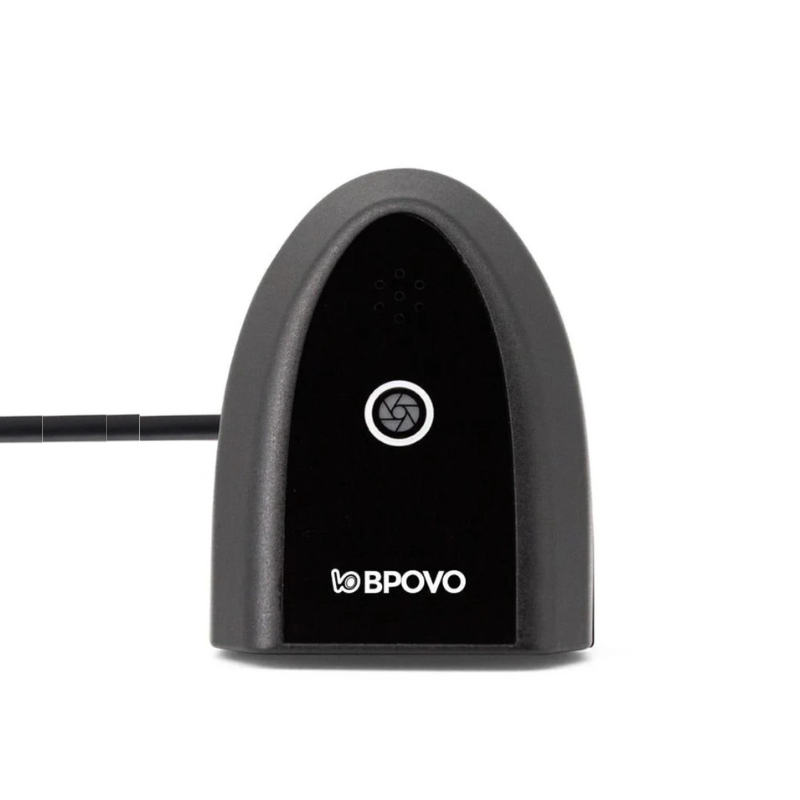

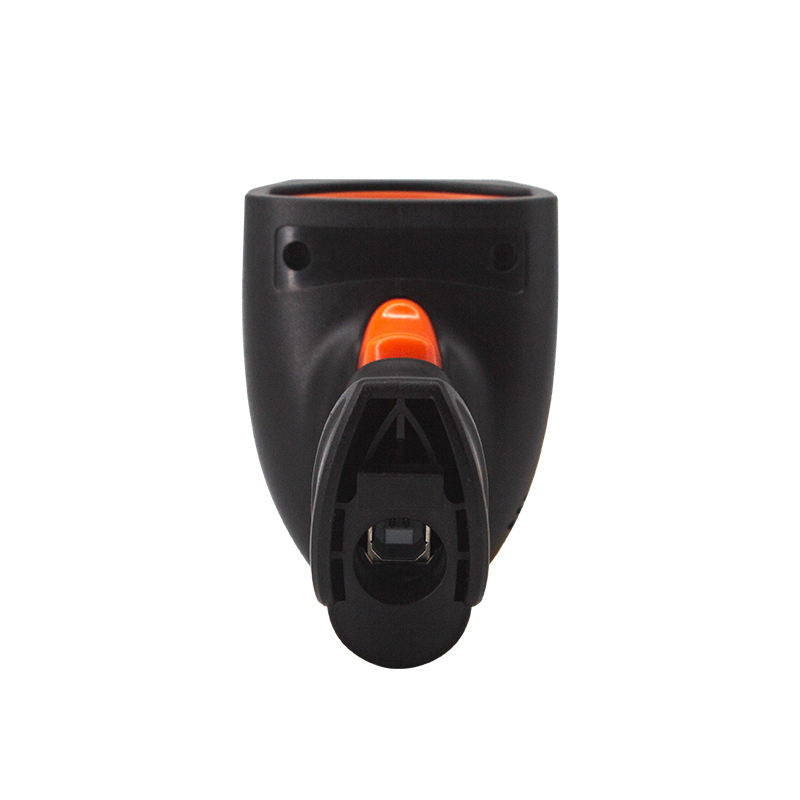

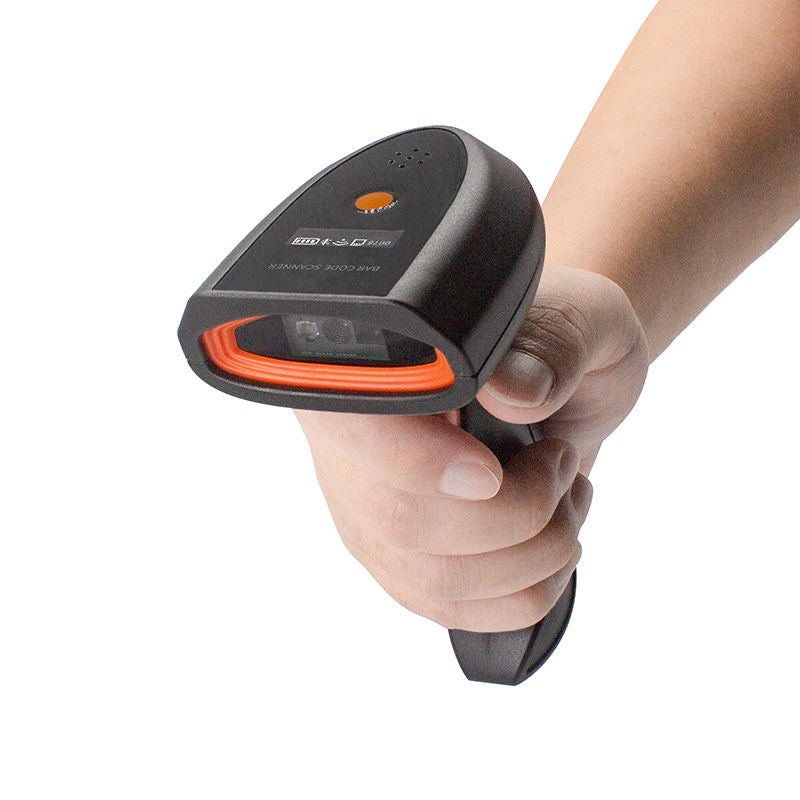

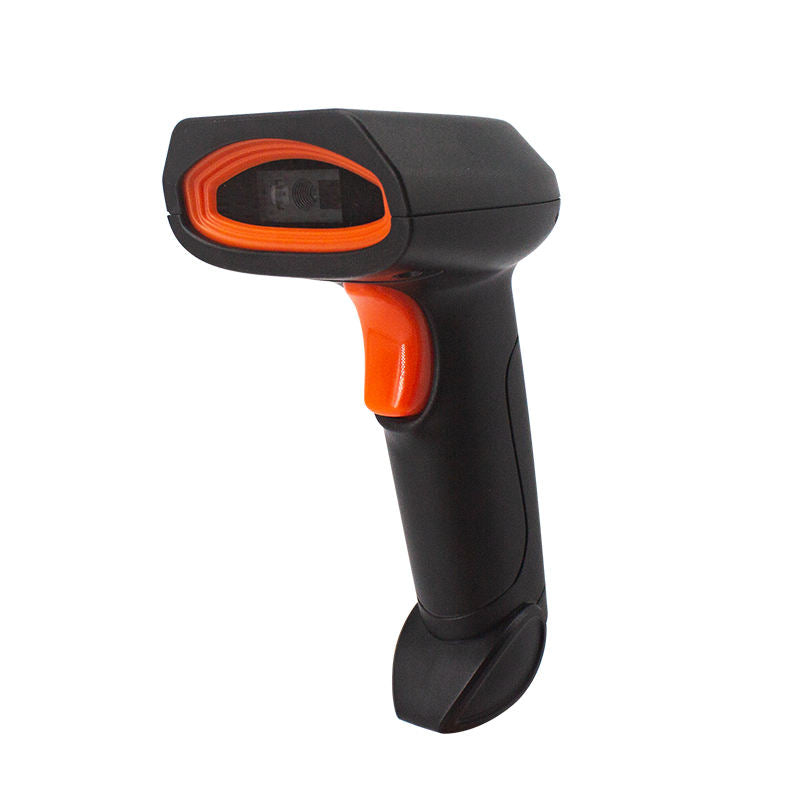

U5 Wired 1D Laser Barcode Scanner – Fast & Reliable
Key Features
| Category | Details |
|---|---|
| Model | B2D-W65 (S20 2D Wired & Wireless Barcode Scanner) |
| Supported 1D Codes | EAN-8, EAN-13, CODE-128, Codabar, UPC-A, UPC-E, Industrial 2 of 5, EAN-128, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1, Aztec |
| Supported 2D Codes | QR Code, Data Matrix, PDF417, Aztec Code, Maxi Code |
| Imaging Technology | High-precision CMOS, 648×488 pixels |
| Scan Speed | ≥25 inches/second |
| Scan Modes | Manual, Automatic Inductive, Successive |
| Wireless Range | 2.4GHz, up to 10–20 meters |
| Battery | 1800 mAh rechargeable, ~26 hours working time |
| Charging | Micro USB, ~5.5 hours |
| Memory Storage | 4 Mbit built-in (offline scanning) |
| User Feedback | LED, Speaker, Vibration |
| Material | High-quality ABS, lightweight |
| Weight | 158 g |
| Connectivity | USB-HID, USB-COM (wired & wireless via dongle) |
| Error Rate | ≤1 in 500 million; Print Contrast ≥25% |
| Light Source | 617 nm LED + White LED |
| Scan Angle | Yaw ±65°, Pitch ±60°, Rotation ±360° |
| Depth of Field | 40 mm – 250 mm |
| Input Voltage | DC 5V ±10% |
| Current | 135 mA operating / 0 mA standby |
| Dimensions | Scanner: 156×64×91 mm Dongle: 19×15×7 mm |
