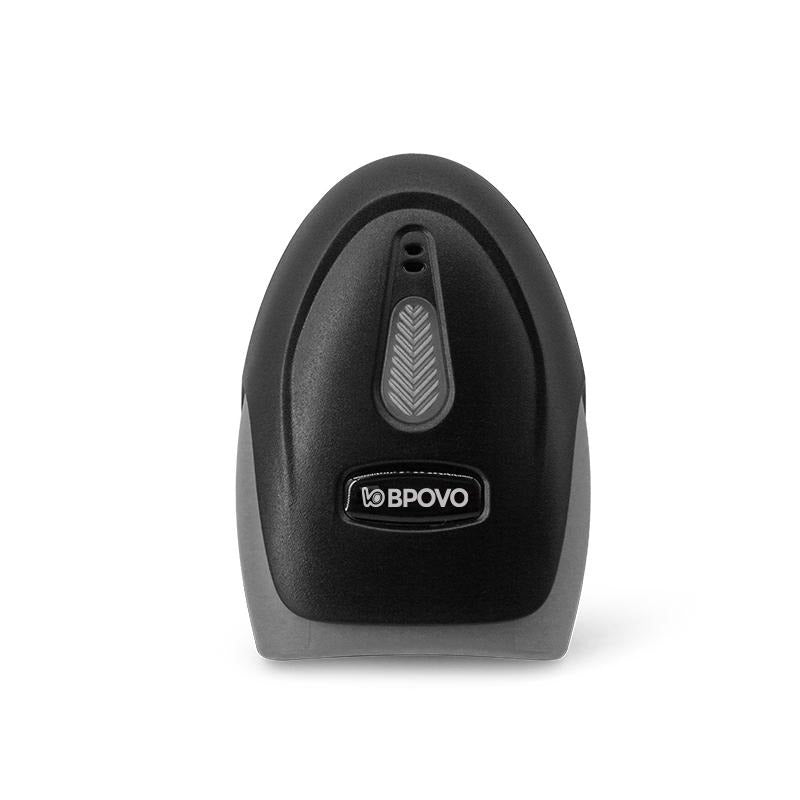

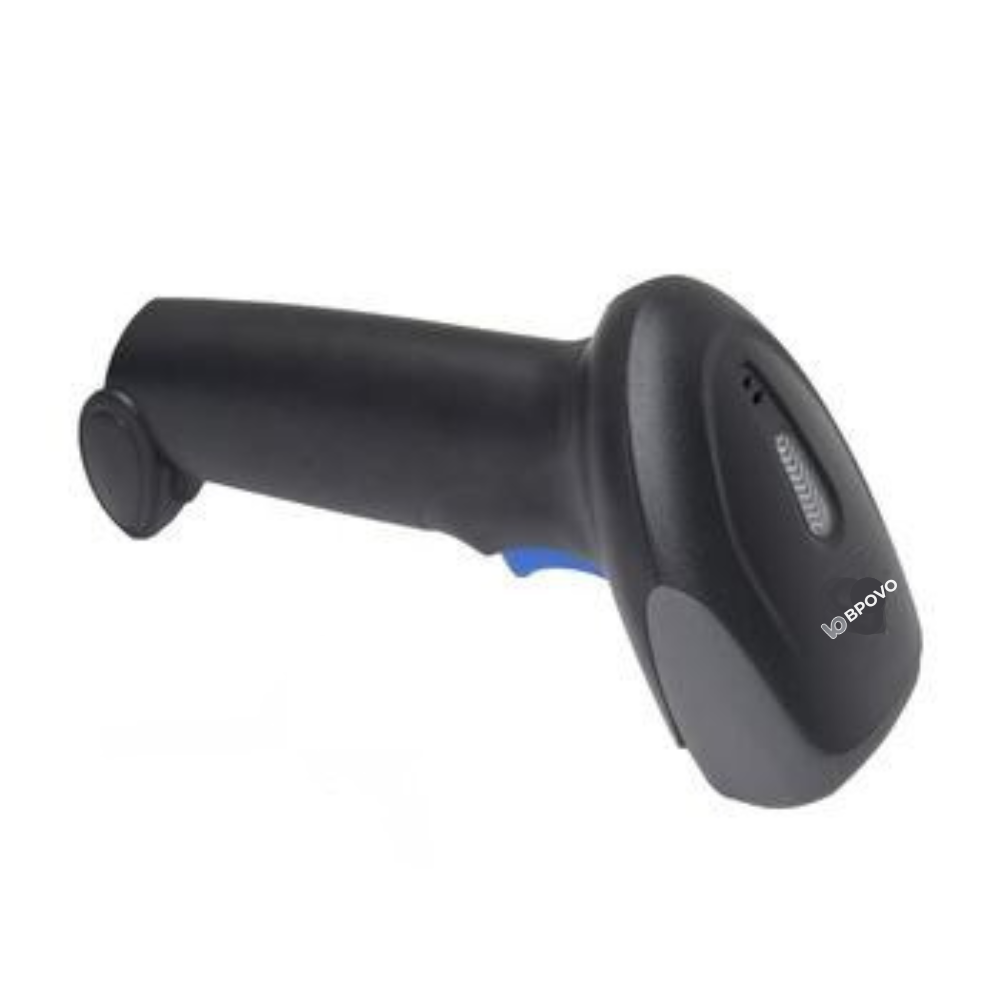

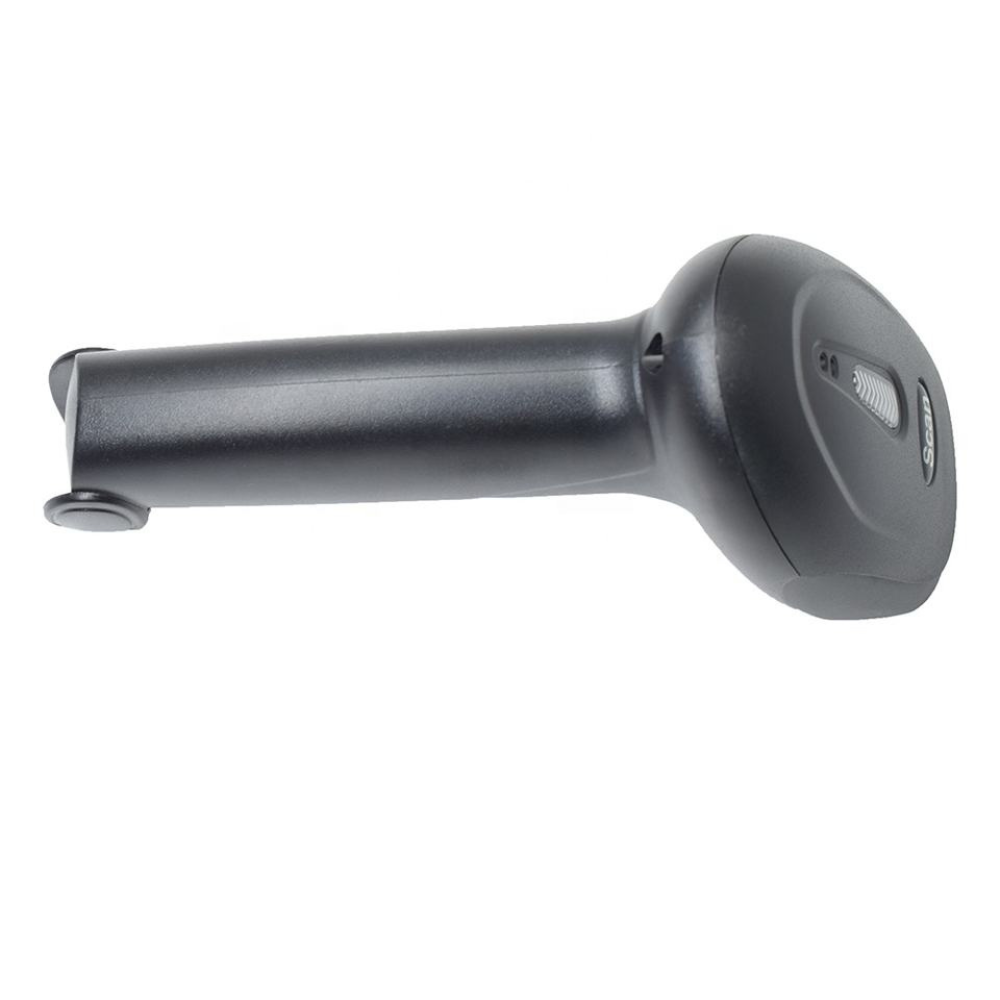

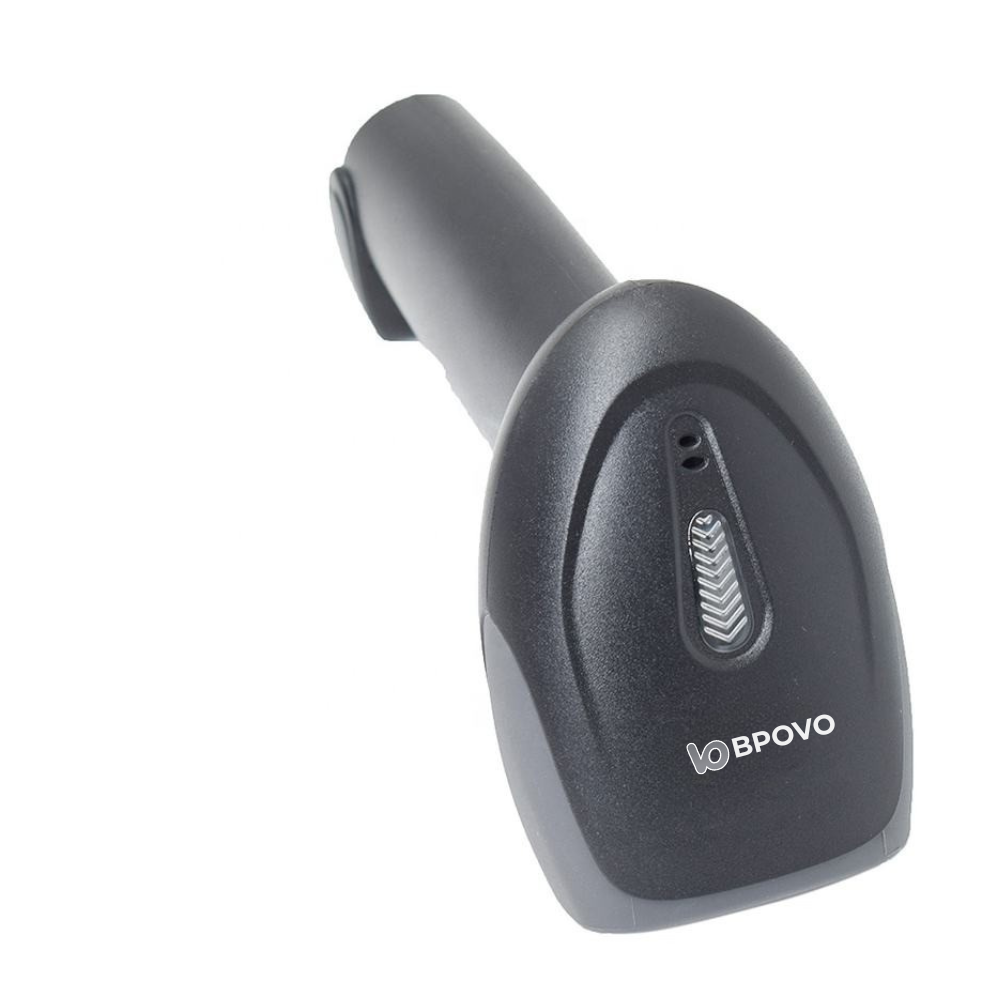

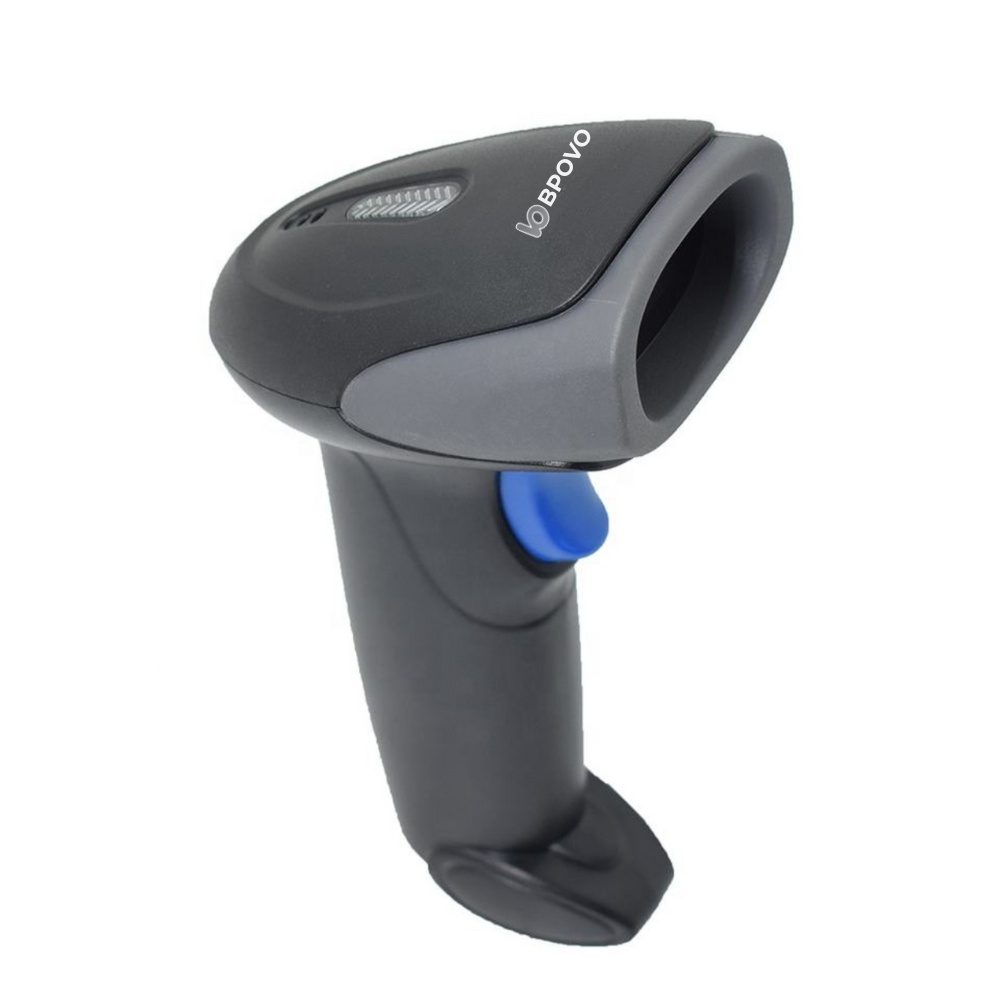

S20 Wired 2D Barcode Scanner – Fast & Reliable
Key Features
| Category | Details |
|---|---|
| Model | S20 (2D Wired Barcode Scanner, 50W) |
| Sensor | CMOS, 648 × 488 pixels |
| Light Source | Self-luminous LED |
| Resolution | 640 × 480 pixels |
| Scan Speed | 120 frames per second |
| Scan Angle | 60° × 360° |
| Depth of Field | 40 mm – 250 mm |
| Accuracy | Code 39 ≥ 5 mil; UPC/EAN ≥ 15 mil |
| Print Contrast | ≥25% |
| Scanning Modes | Manual trigger / Auto-sensing / Continuous scanning |
| Supported 1D Barcodes | EAN-8, EAN-13, UPC-A, UPC-E, Code 128, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, EAN-128, MSI, GS1 |
| Supported 2D Barcodes | QR Code, Data Matrix, PDF417, Aztec, MaxiCode |
| Interfaces | USB-HID keyboard, USB-COM virtual serial port |
| Prompt Methods | Buzzer, LED, optional vibration motor |
| Durability | IP54-rated (dust & water splash resistant) |
| Dimensions | 156 × 64 × 91 mm |
| Weight | 158 g |
| Material | ABS plastic |
| Cable Length | 1 m |
| Input Voltage | DC 5V ±10% |
| Operating Current | 135 mA |
| Compliance | CE & FCC certified, Class II laser safety |
