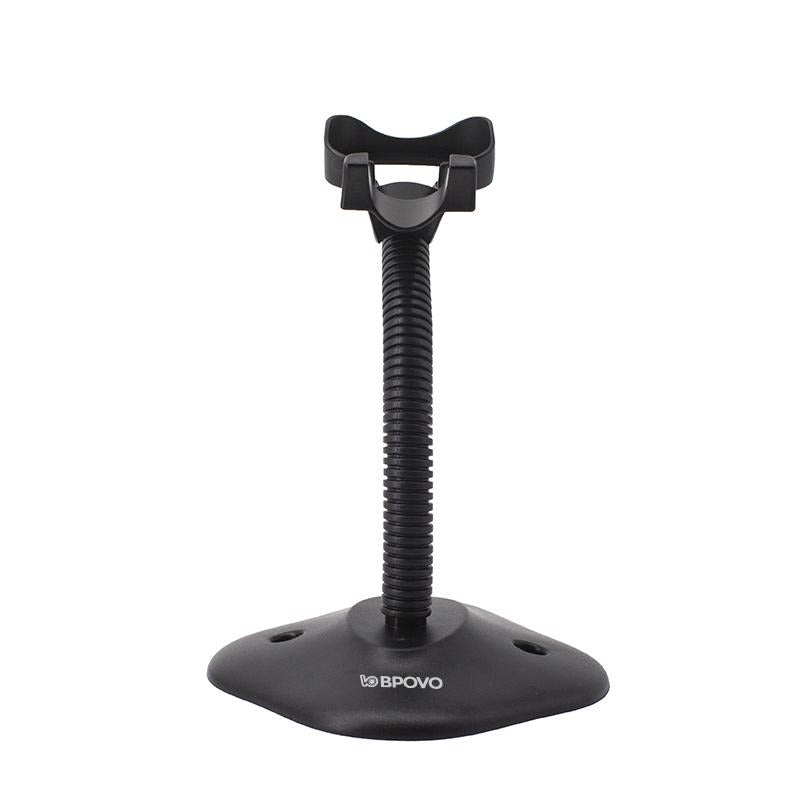

Foldable QR Code Scanner Stand – Hands-Free & Reliable
Key Features
| Category | Details |
|---|---|
| Model | B2D-WBTC62S |
| Key Features | • High-speed decoding for 1D/2D codes • Durable ABS+PC build (1.5m drop resistance) • Trigger, auto-sensing, or continuous scanning • Multi-language keyboard support • Smart docking station (receiver + charger + stand) • OLED display + buzzer, LED & vibration feedback • 500K offline storage with inventory mode • One-click pairing & uploading • Suitable for retail, healthcare, payments & more |
| Performance | Sensor: 300,000-pixel global CMOS Resolution: 640 × 480 Light Source: White LED Scan Angle: ±60° / 360° rotation Scan Rate: 120 fps Field of View: 48°(H) × 30°(V) Printing Contrast: ≥15% Min. Resolution: 1D: 3 mil, QR: 5 mil |
| Depth of Field | QR (20 mil): 15–160 mm EAN-13 (13 mil): 30–200 mm Mobile QR: 50–320 mm Code 39 (8 mil): 20–145 mm Data Matrix (10 mil): 5–110 mm Code 128 (7 mil): 15–135 mm PDF417 (7 mil): 30–125 mm |
| Decoding Capability | 1D: EAN-13, EAN-8, UPC-A/E, ISBN, ISSN, Codabar, Code 128, Code 93, Code 39, Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI-Plessey, GS1 Databar, etc. 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, MaxiCode, etc. Supports mobile screen scanning. |
| Connectivity | Interfaces: USB-HID, USB-COM virtual serial port Wireless: 2.4G (0–80m), Bluetooth (0–20m) Cable: 1m USB straight line |
| Physical & Power | Scanner Size: 157 × 70 × 112 mm Charging Stand: 128 × 81 × 89 mm Weight: 173.5 g (net), 510 g (with accessories) Housing: ABS+PC Input Voltage: DC 5V ±10% Current: 350 mA (working), 130 mA (standby) Battery: 2000 mAh Li-ion Charging Time: ~4 hours Battery Life: 10 days standby, ~24 hrs continuous use |
| Environmental | Operating Temp: 0°C ~ 50°C Storage Temp: -40°C ~ +60°C Humidity: 5%–95% non-condensing Ambient Light: ≤ 5,000 Lux Drop Resistance: 1.5 m free fall |
